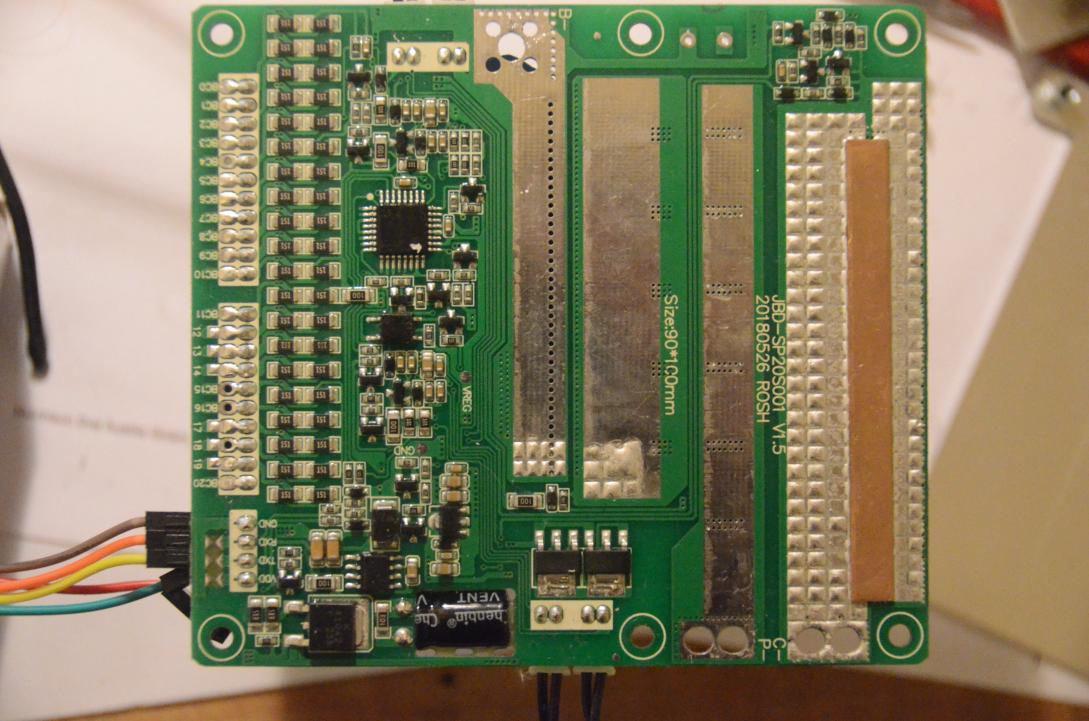

bms-jbd-sp20-s001-20s board
all 6 MOSFETS (C/P) are knb2910a
Software peculiarities: in contrast to the documented a5 response this one answers back the command code (dd a5 05 ... -> dd 04 00 28):
