(22. /or/ex lightbox)

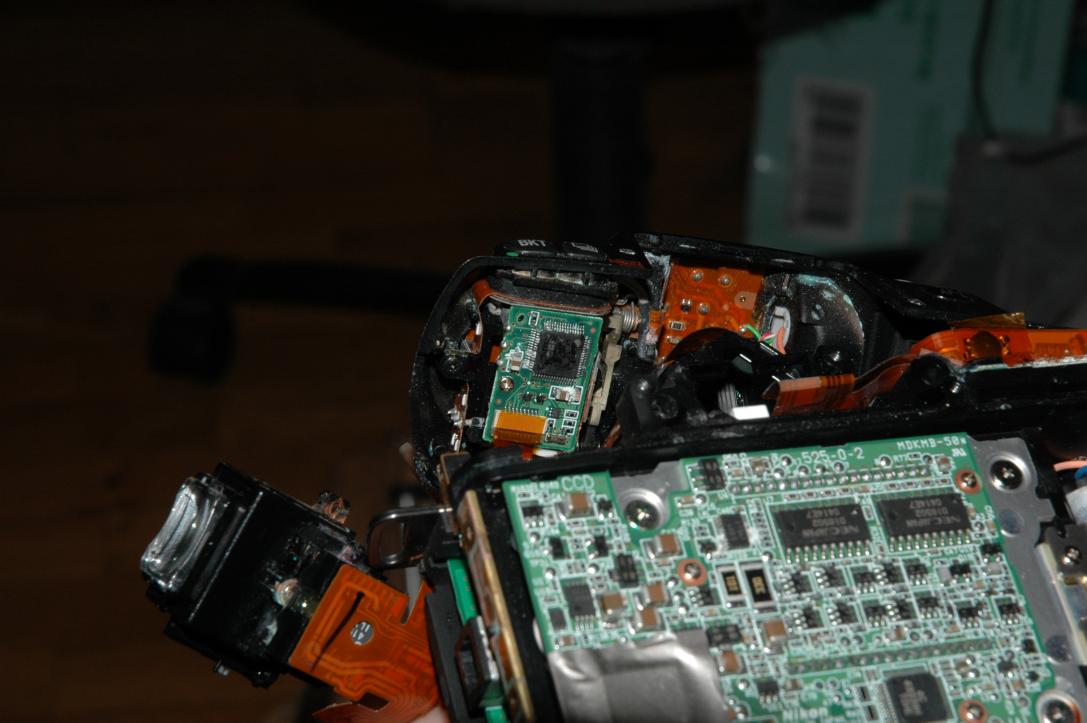

(probably) Hitachi H8/300 compatible CPU: Nikon DSB01
on the left, above the ocular (metering chip):
Sony
415PO
ILX141N
all the connections from the top LCD and the matrix metering chip seem to go to the IC on top of the camera (top of the image)
|
