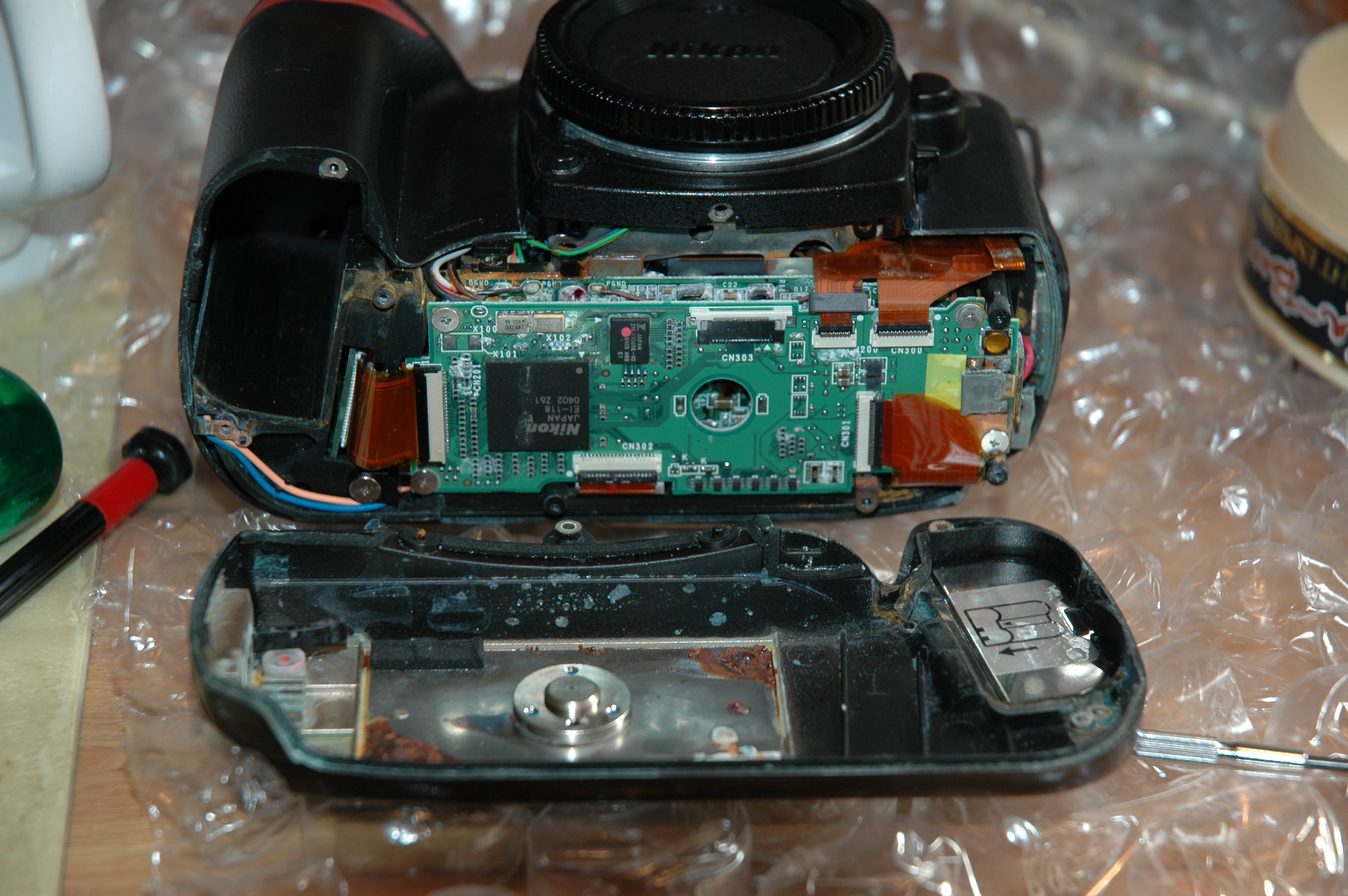

![flash-eeprom: 29lv160te-90/cpu (fujitsu fr30 compatible): E1-118 flash-eeprom: 29lv160te-90/cpu (fujitsu fr30 compatible): E1-118](DSC_0323_small.jpg) |
(1. /or/ex lightbox) flash-eeprom: 29lv160te-90
cpu (fujitsu fr30 compatible): E1-118
|
![rams on bottom:/MT48LC16M16A2 4 Meg x 16 x 4 banks (ie each 32 MB) rams on bottom:/MT48LC16M16A2 4 Meg x 16 x 4 banks (ie each 32 MB)](DSC_0326_small.jpg) |

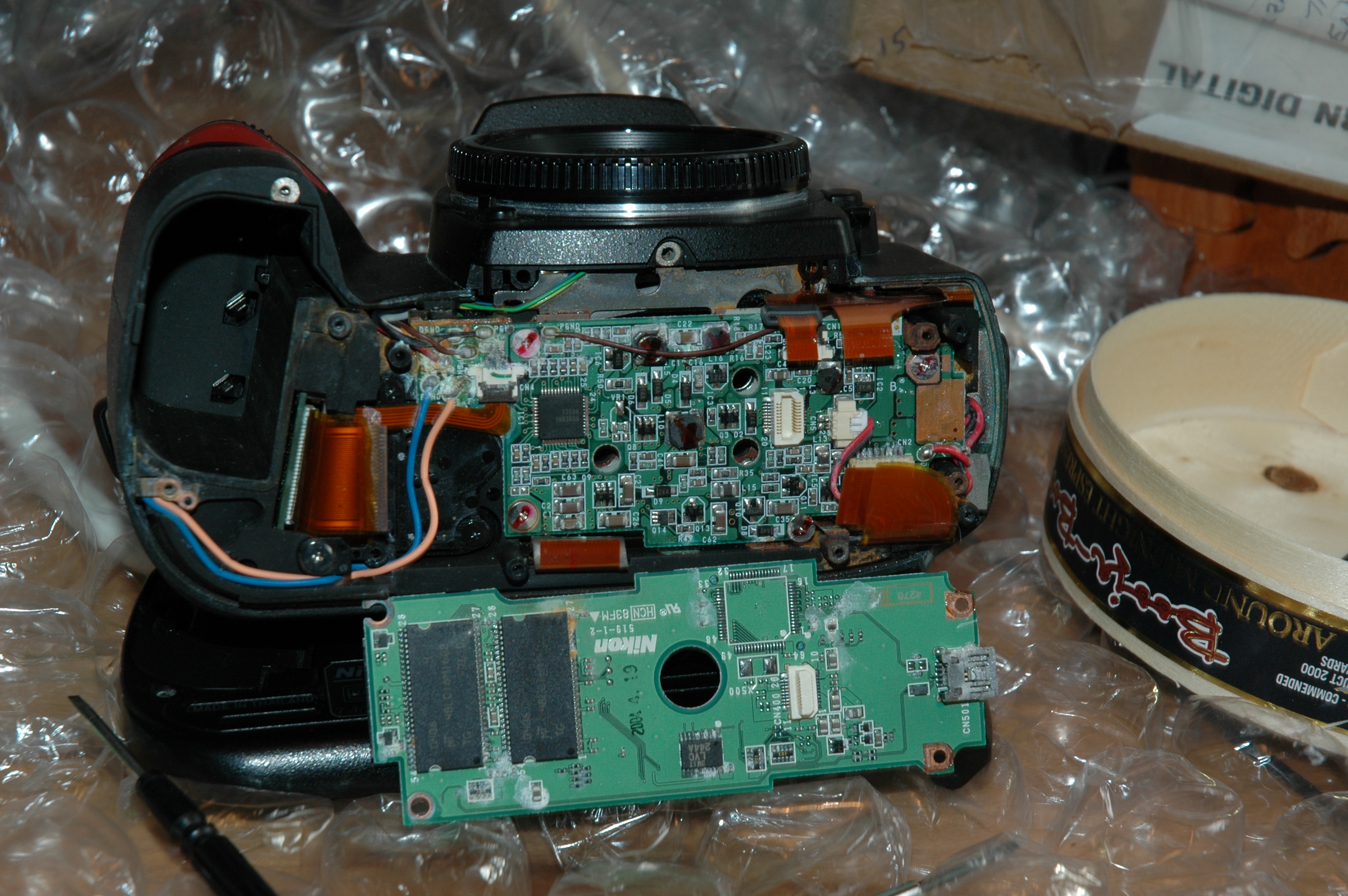

(2. /or/ex lightbox) rams on bottom:
MT48LC16M16A2 4 Meg x 16 x 4 banks (ie each 32 MB)
|

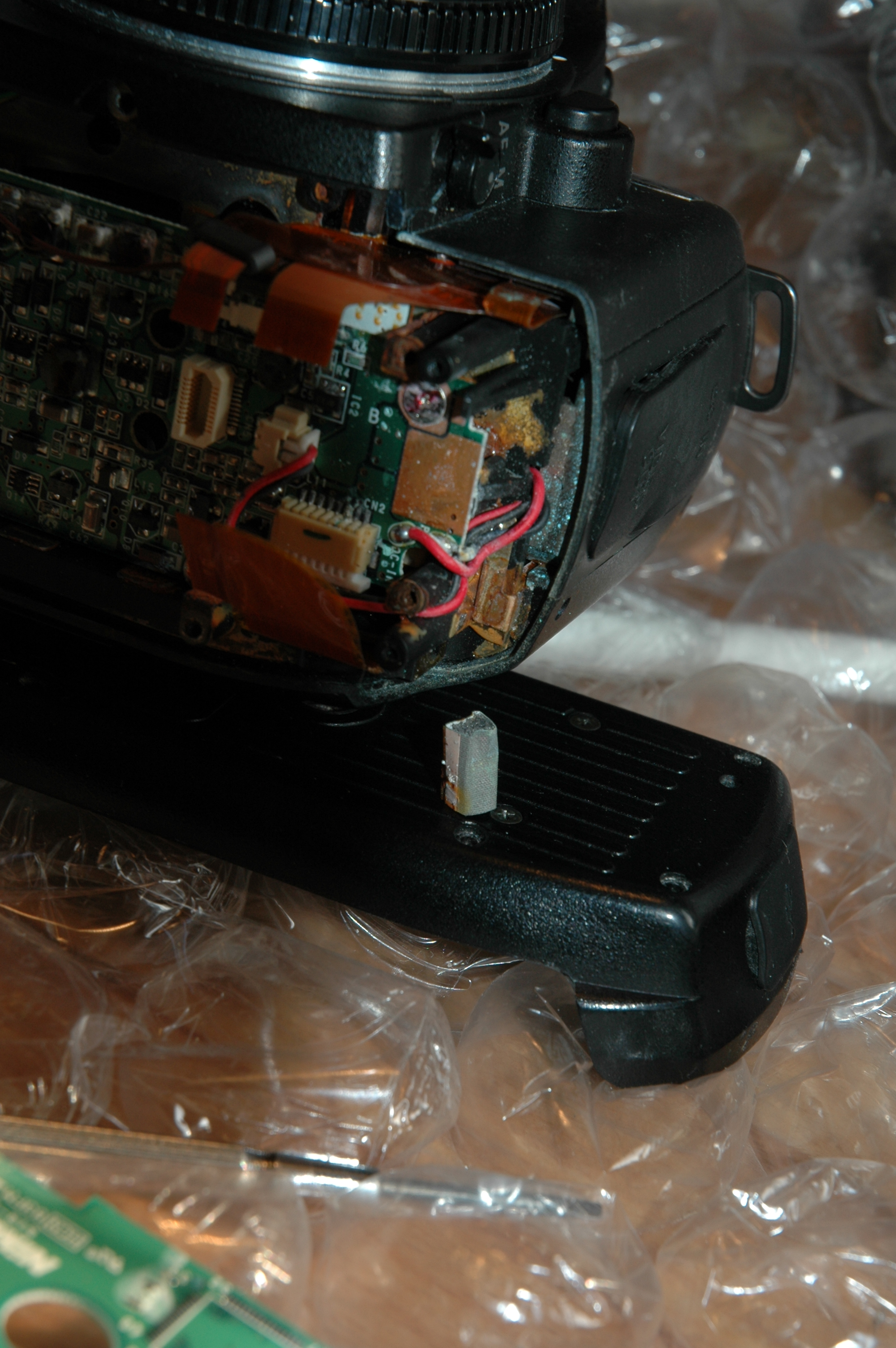

![Markings on chip under the silver tape:/Nikon Japan/EI-119-/0408 Z80/E1 Markings on chip under the silver tape:/Nikon Japan/EI-119-/0408 Z80/E1](DSC_0328_small.jpg) |

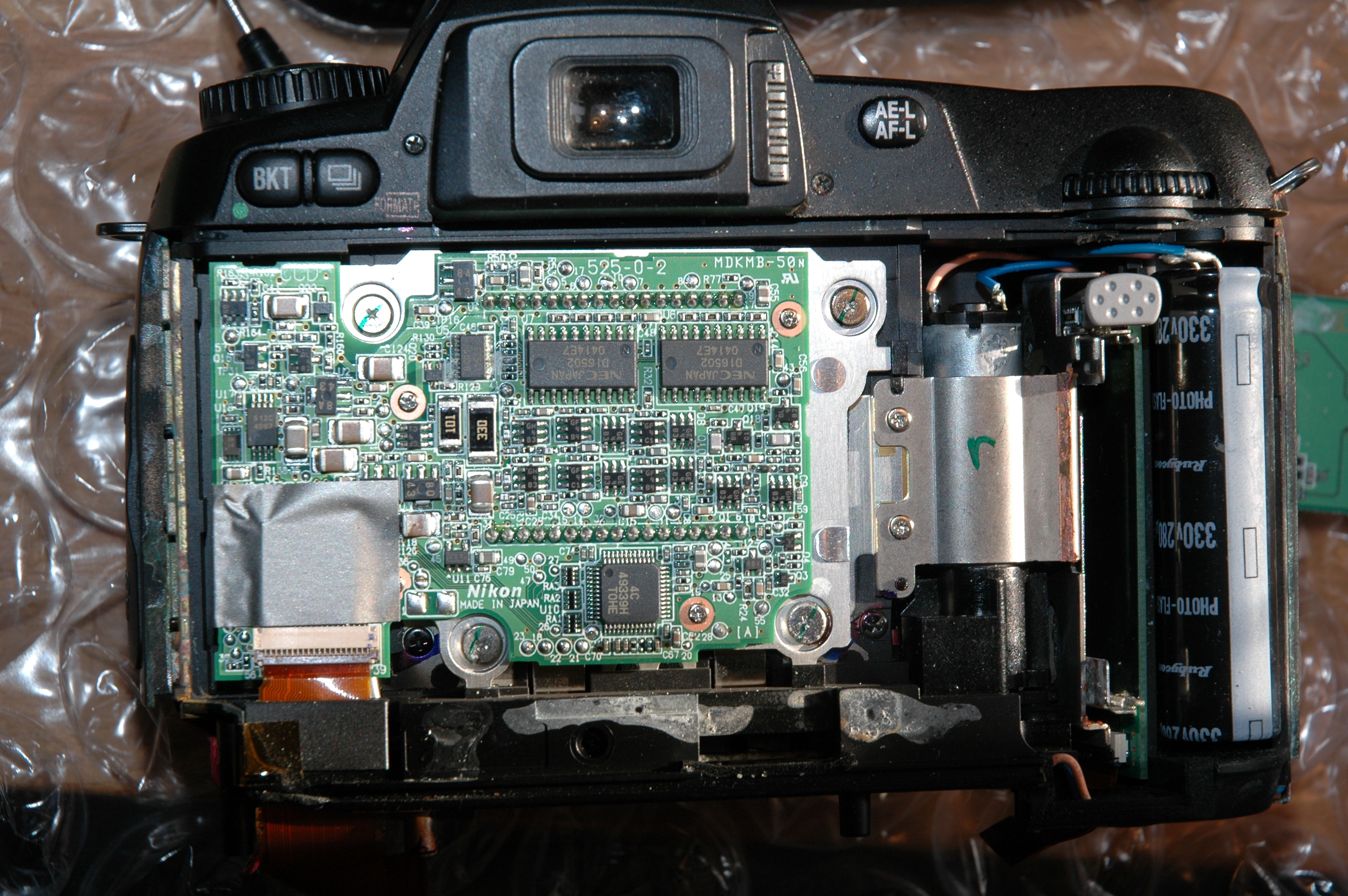

(4. /or/ex lightbox) Markings on chip under the silver tape:
Nikon Japan
EI-119-
0408 Z80
E1
|

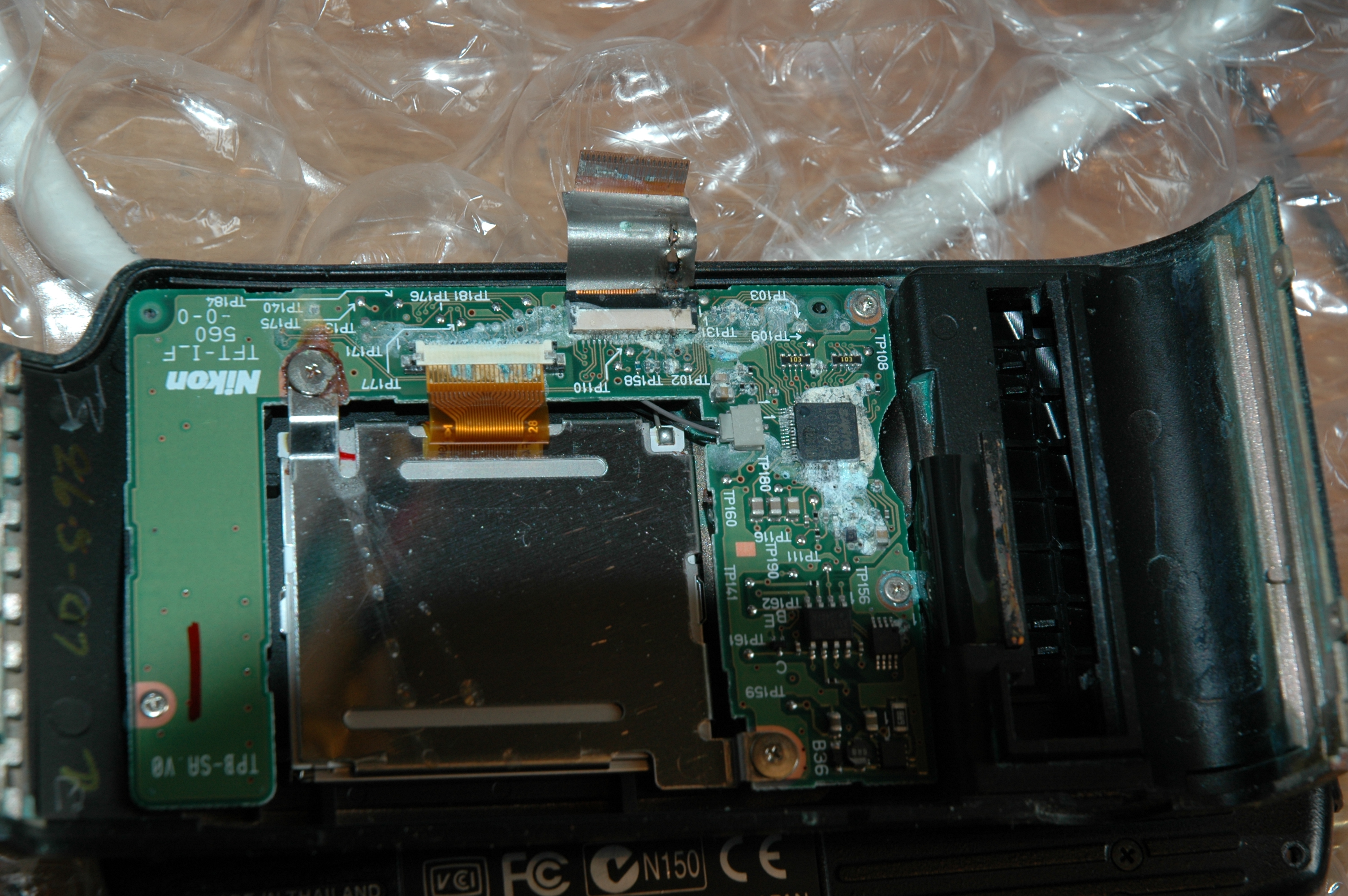

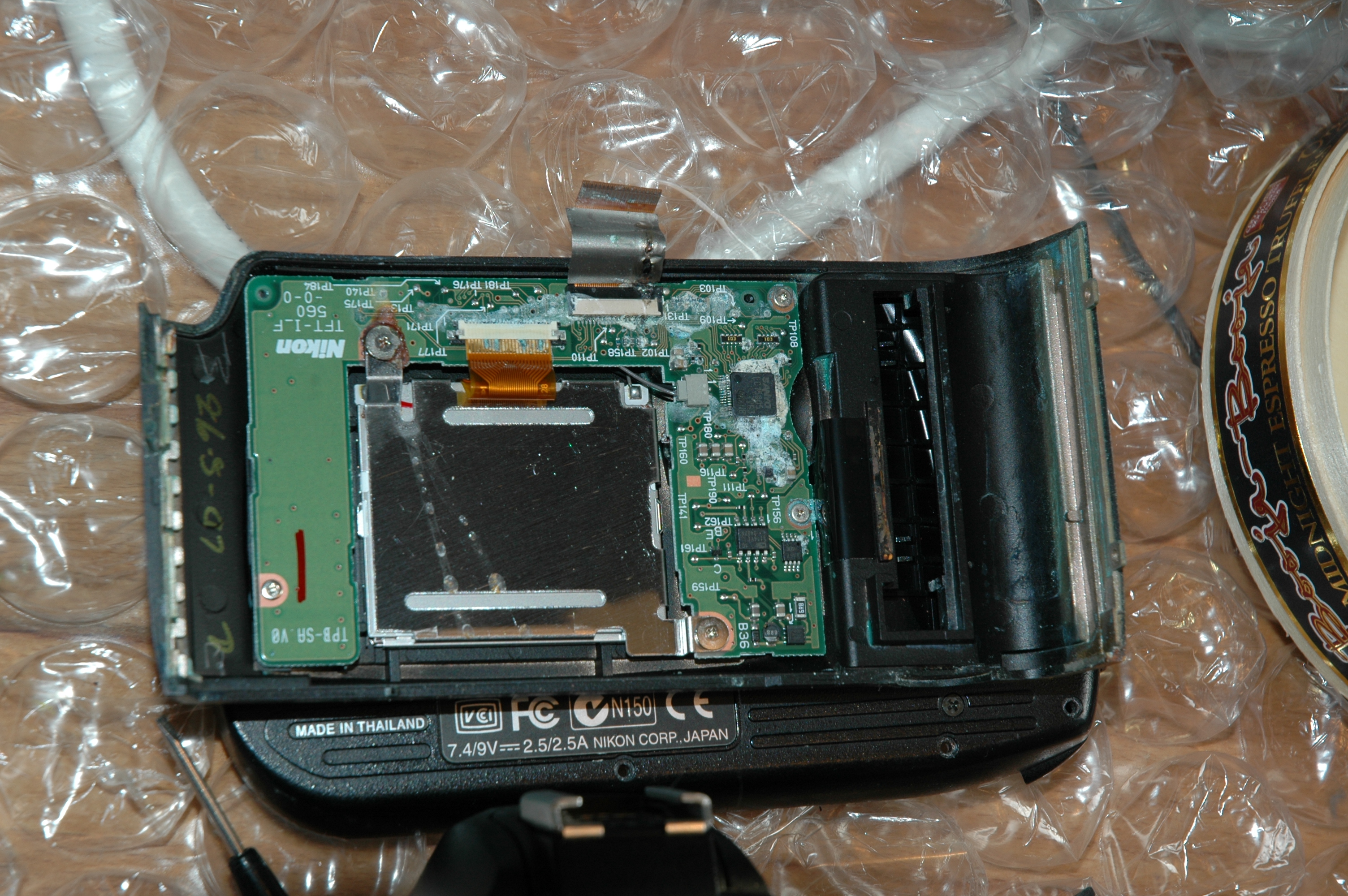

![backside of display: caveat burnt power line on flex pcb backside of display: caveat burnt power line on flex pcb](DSC_0330_small.jpg) |
(6. /or/ex lightbox) backside of display: caveat burnt power line on flex pcb
|

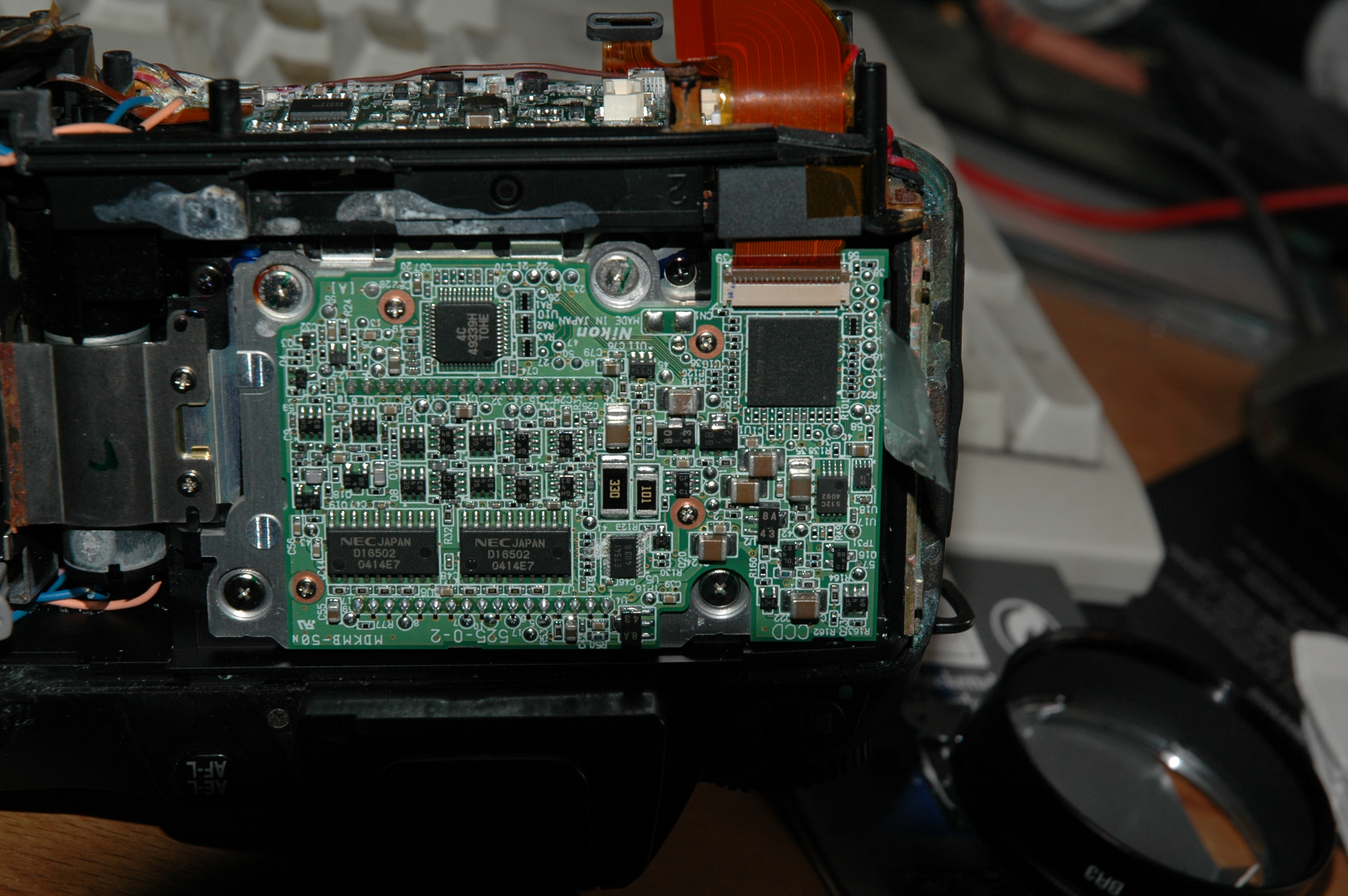

![backside of sensor/below sticker: E1-119 backside of sensor/below sticker: E1-119](DSC_0331_small.jpg) |
(7. /or/ex lightbox) backside of sensor/below sticker: E1-119
|

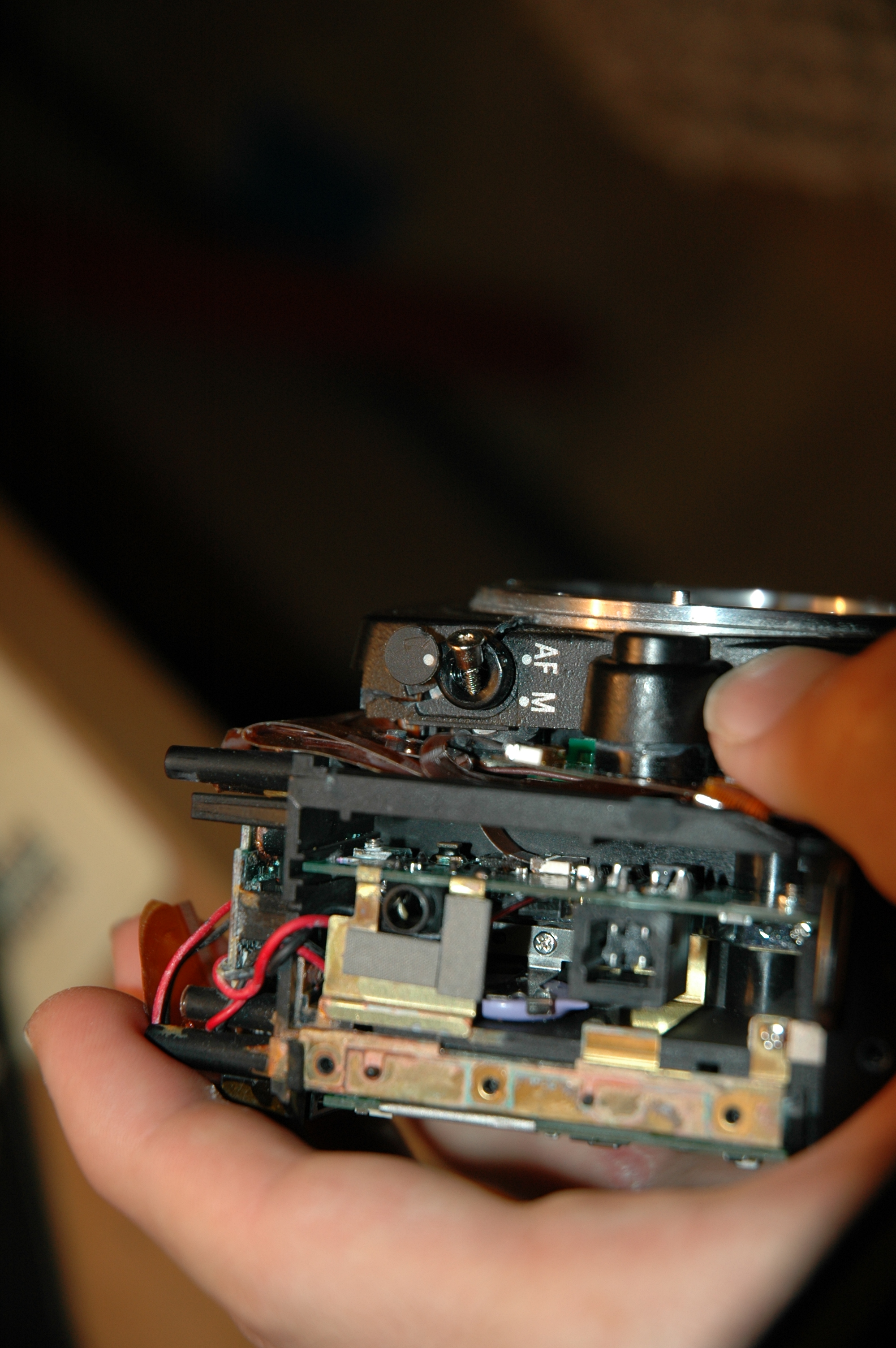

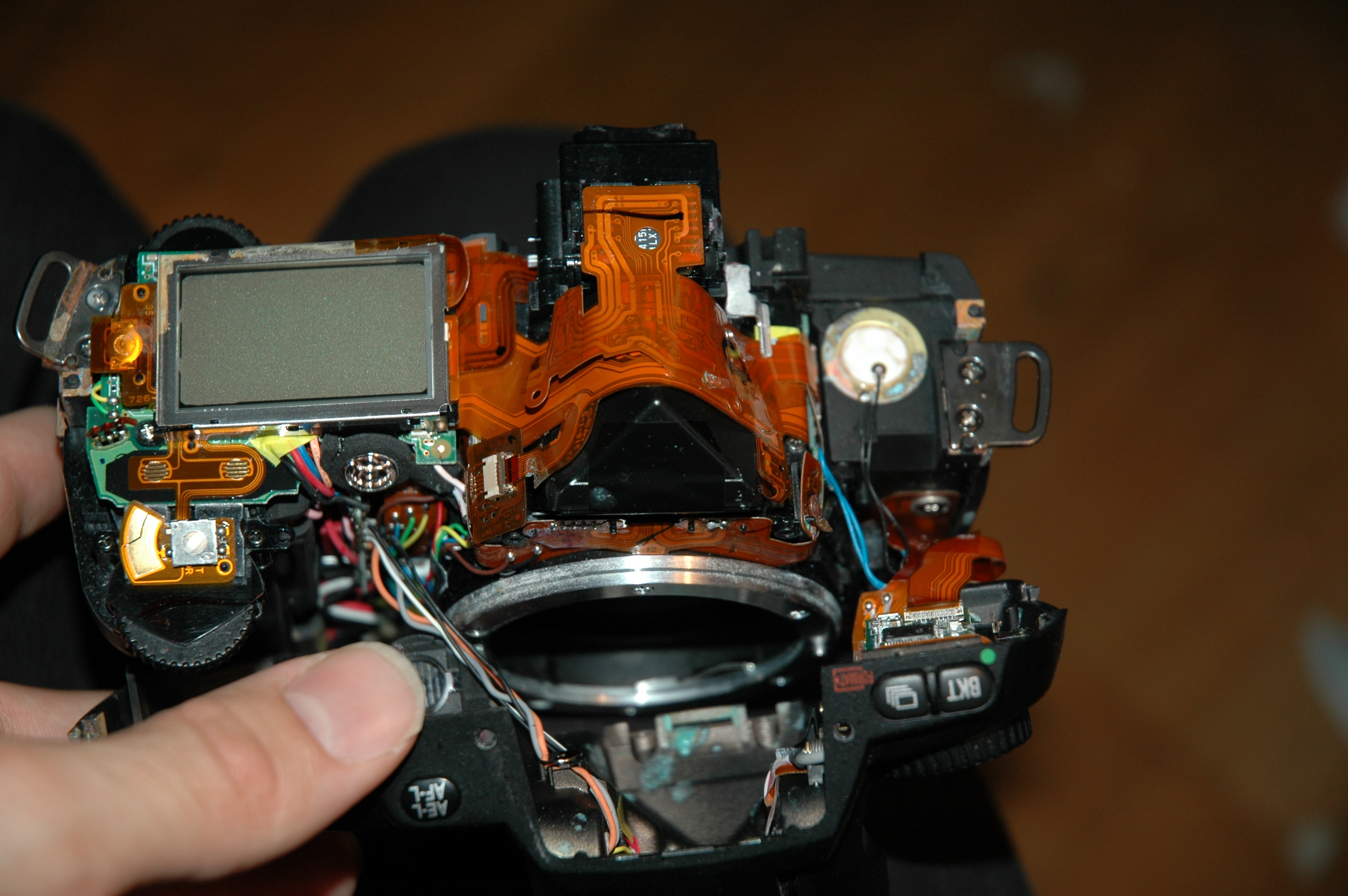

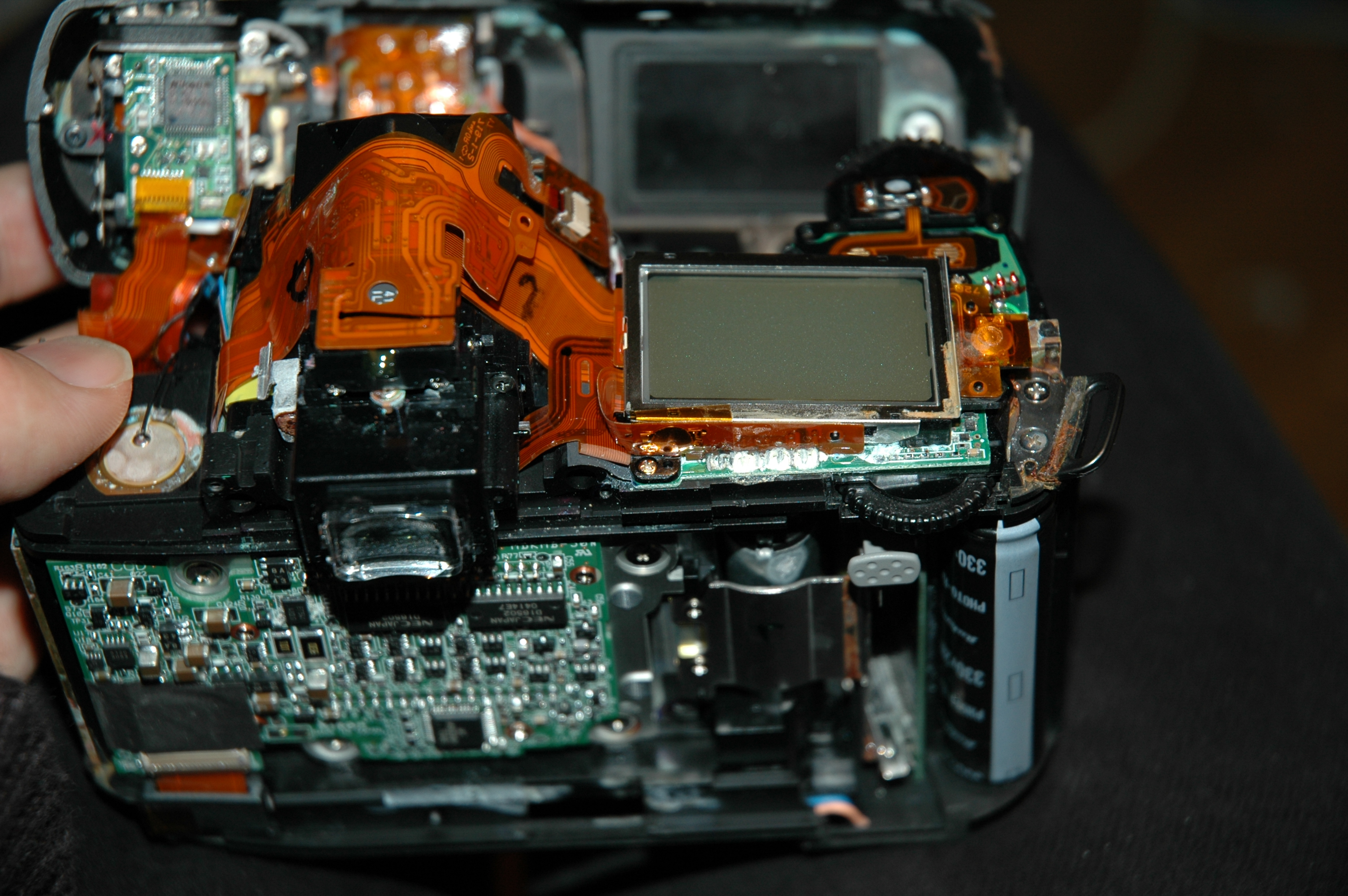

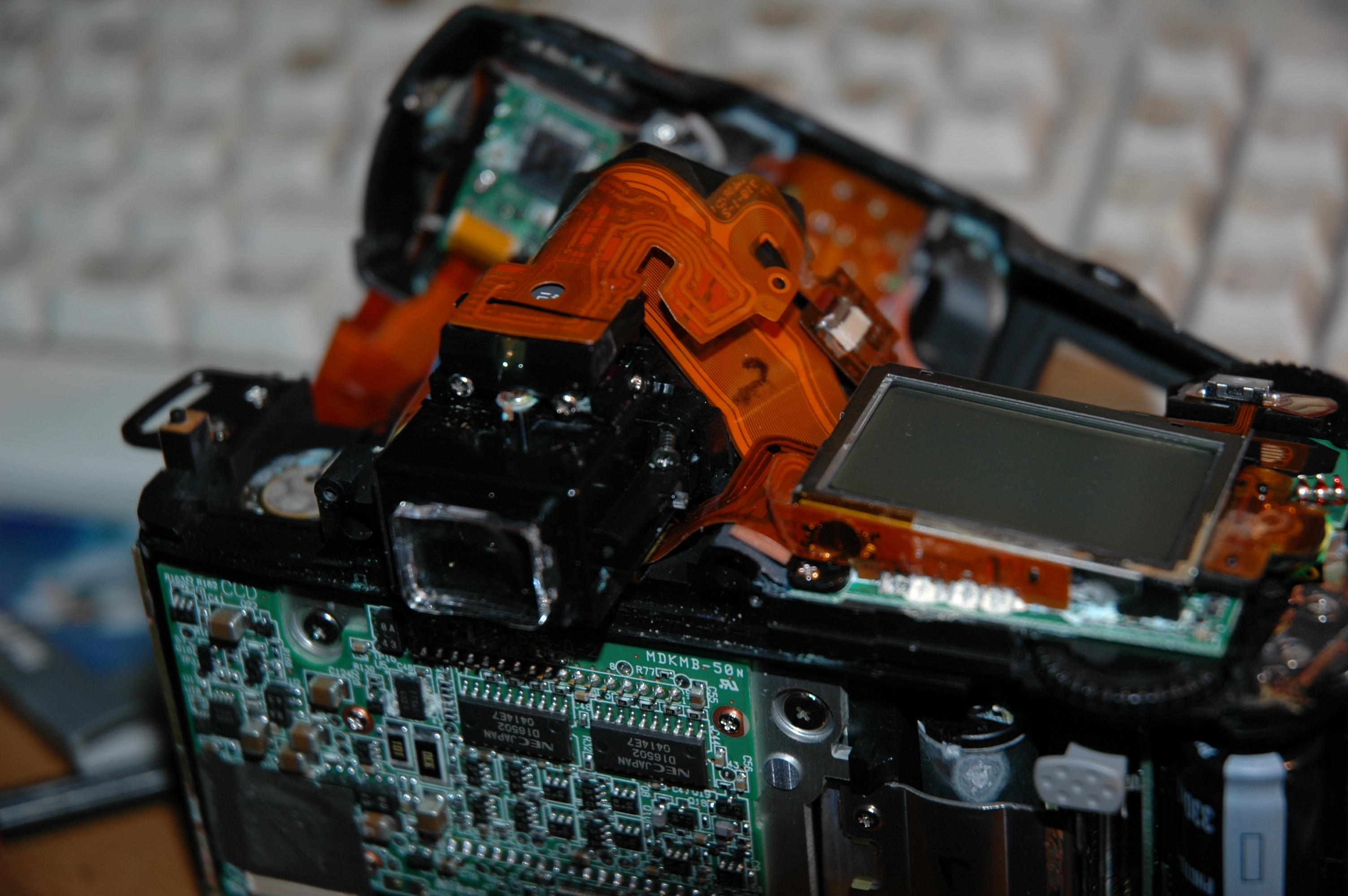

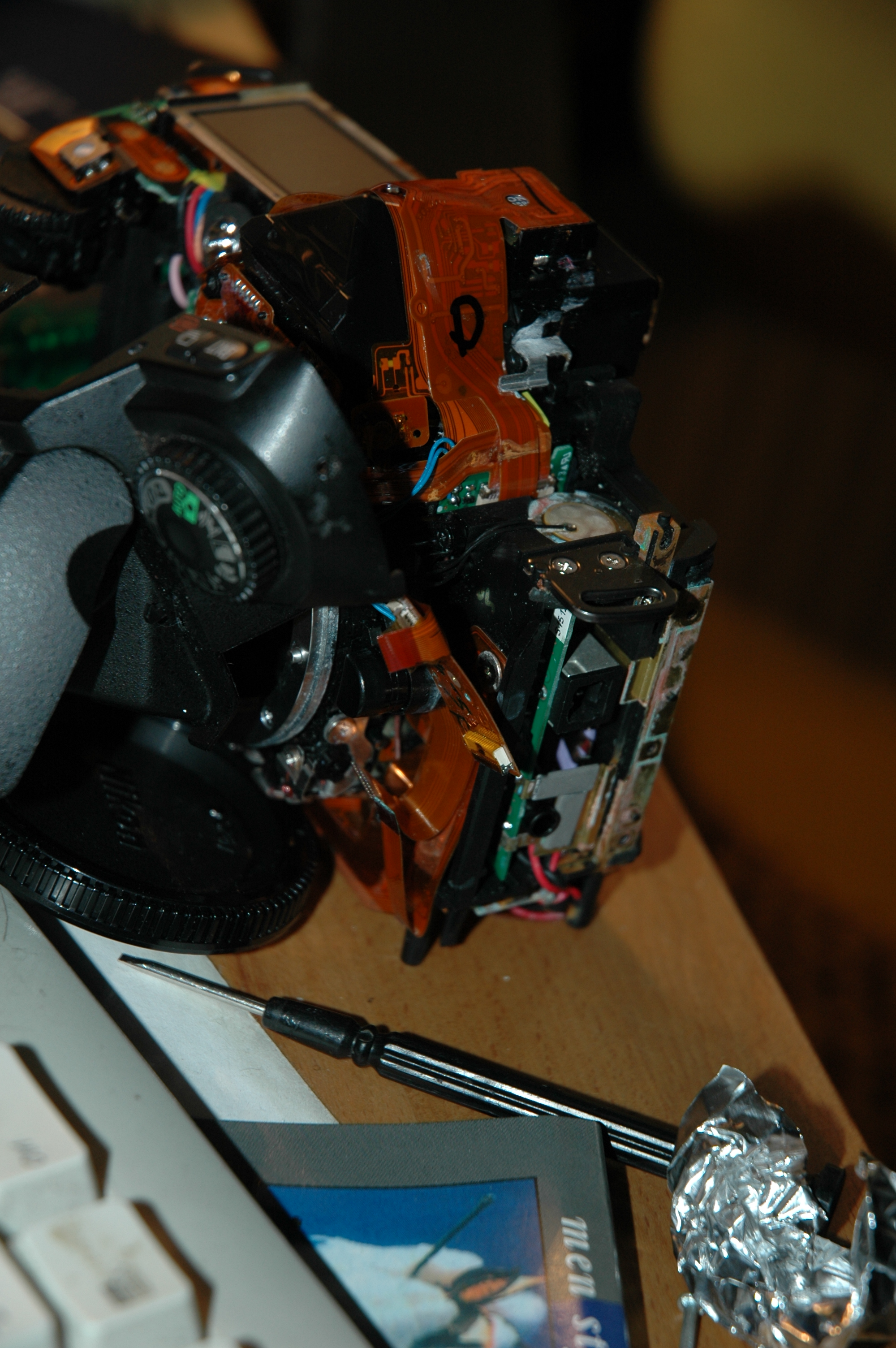

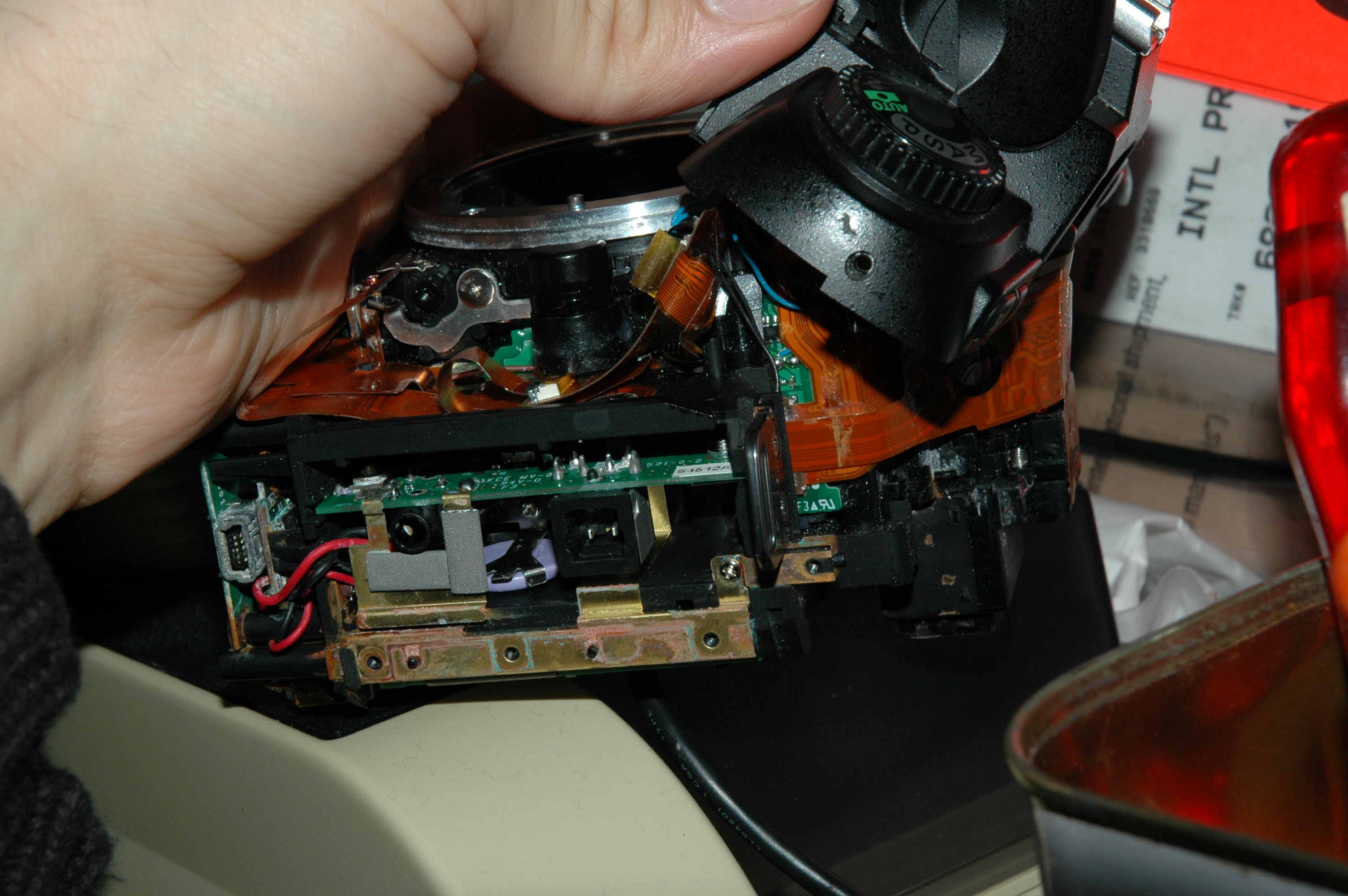

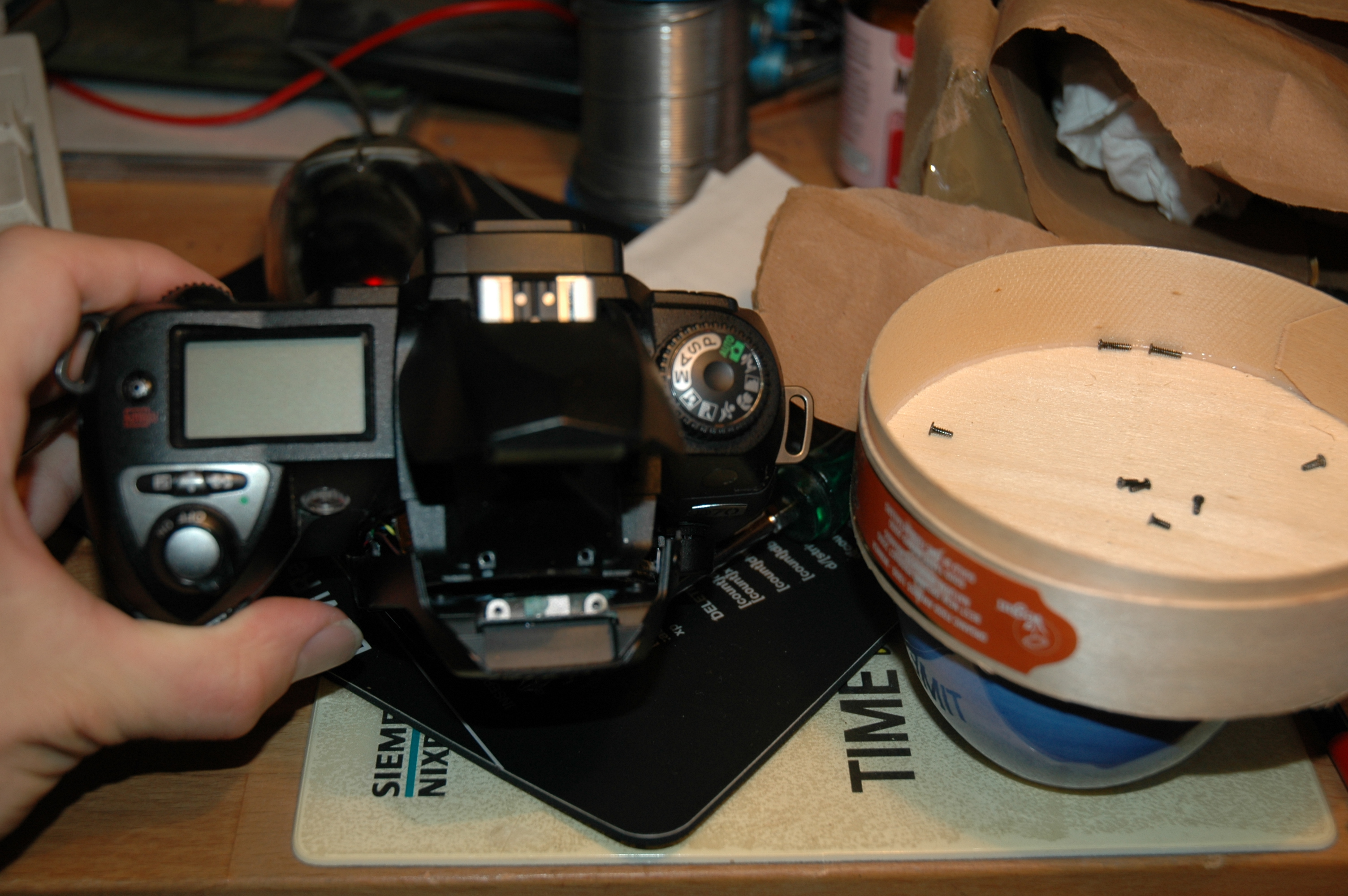

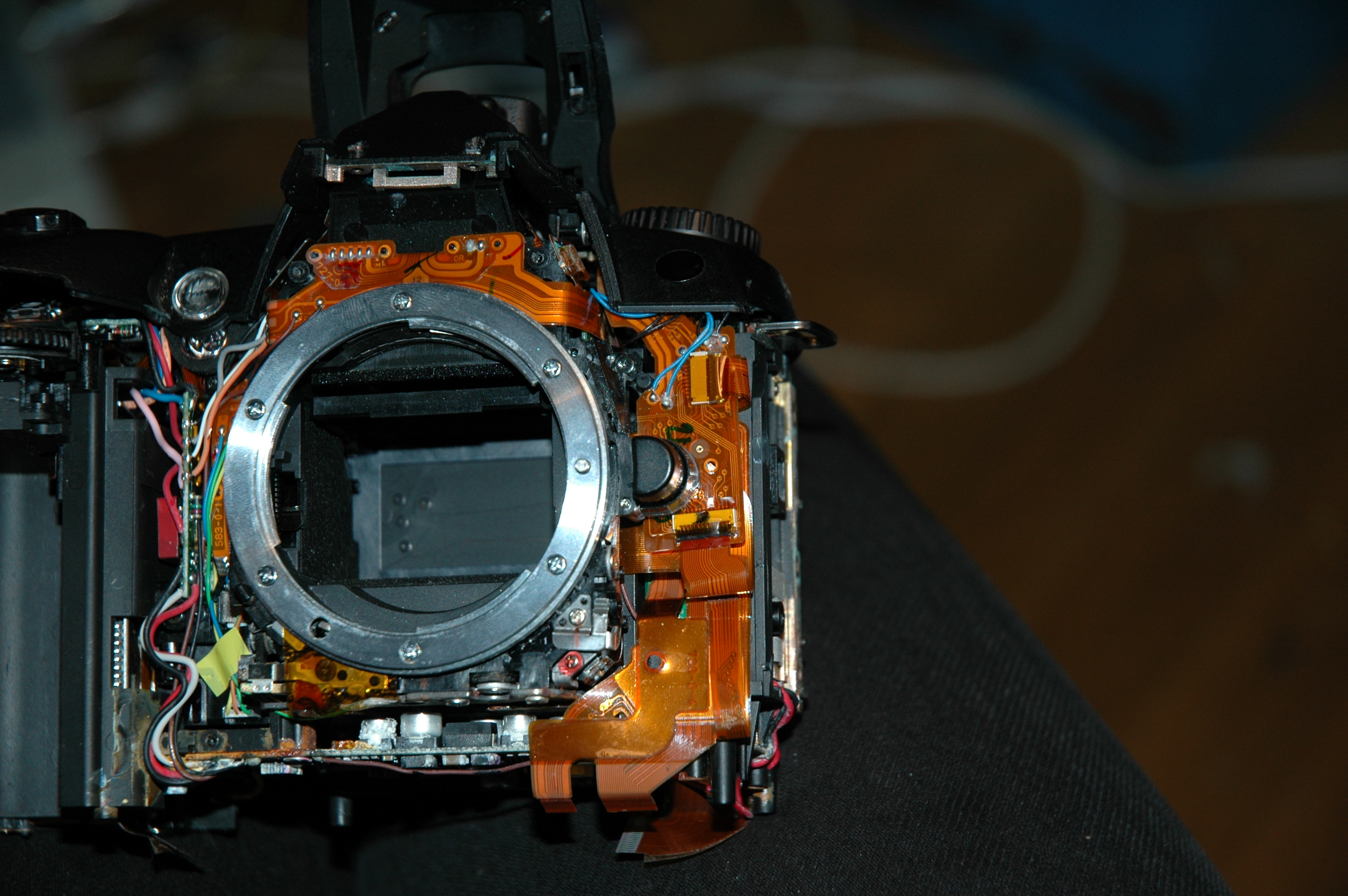

![(probably) Hitachi H8/300 compatible CPU: Nikon DSB01/on the left, above the ocular (metering chip): /Sony/415PO/ILX141N/all the connections from the top LCD and the matrix metering chip seem to go to the IC on top of the camera (top of the image) (probably) Hitachi H8/300 compatible CPU: Nikon DSB01/on the left, above the ocular (metering chip): /Sony/415PO/ILX141N/all the connections from the top LCD and the matrix metering chip seem to go to the IC on top of the camera (top of the image)](DSC_0348_small.jpg) |

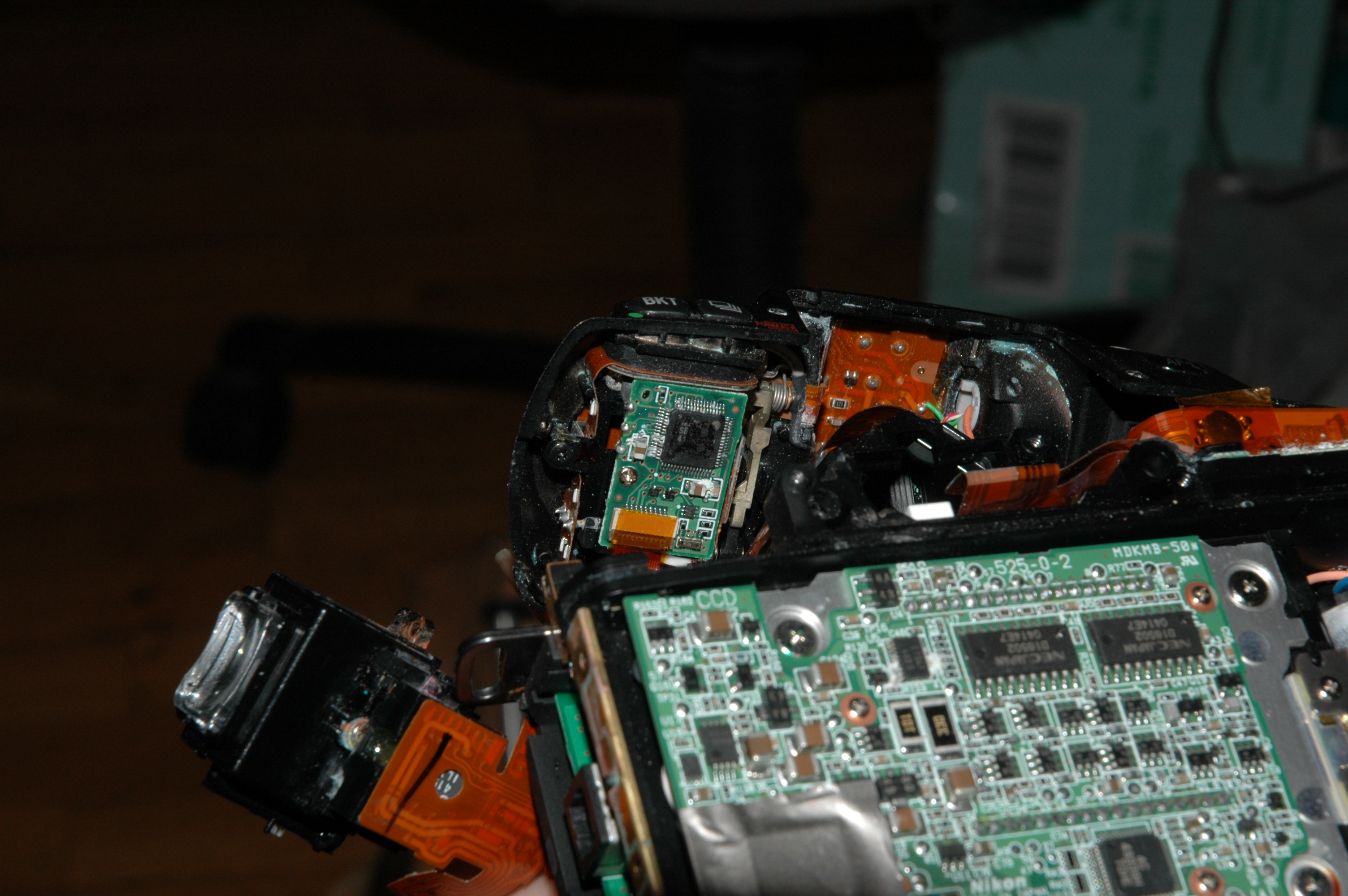

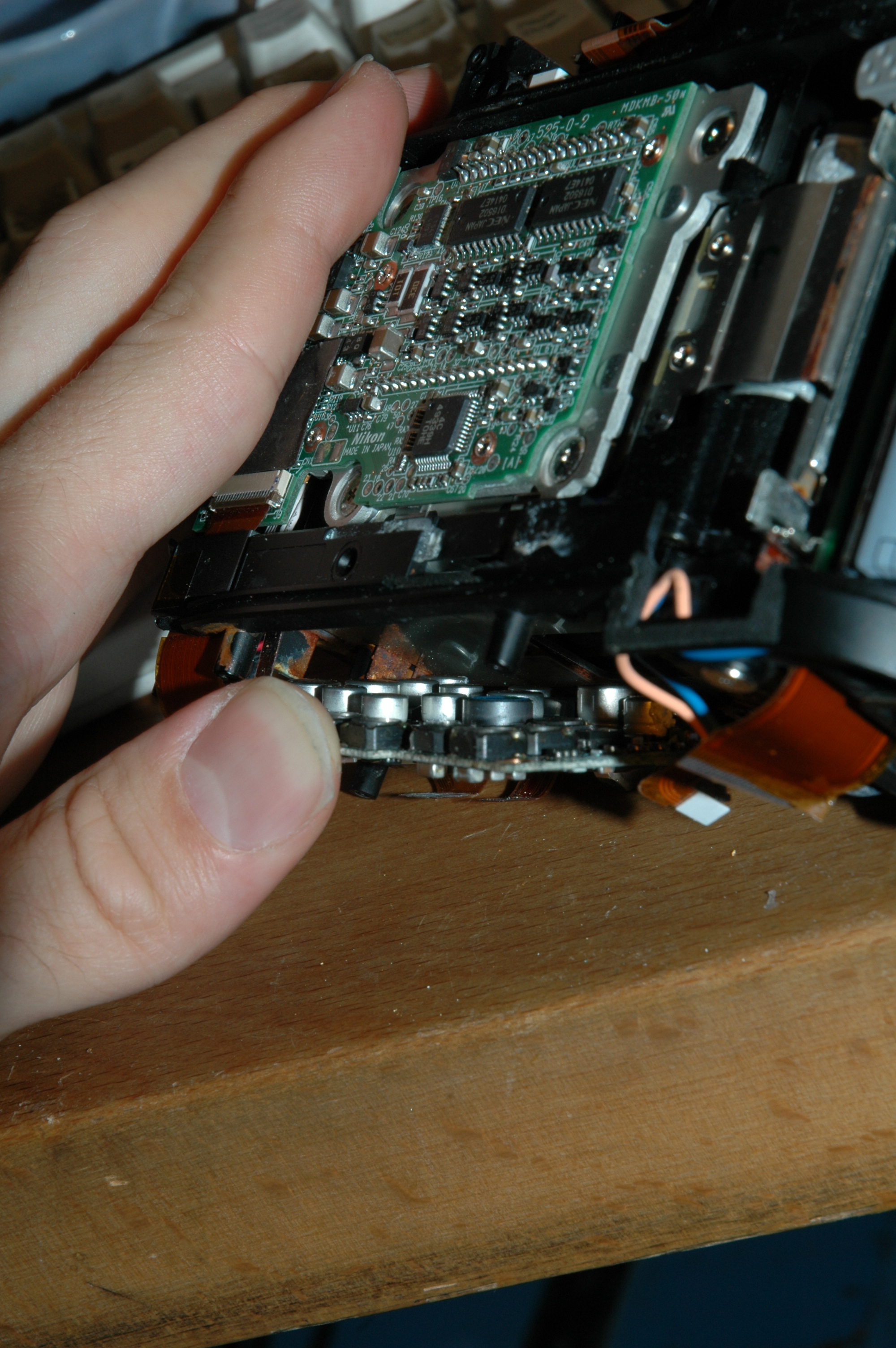

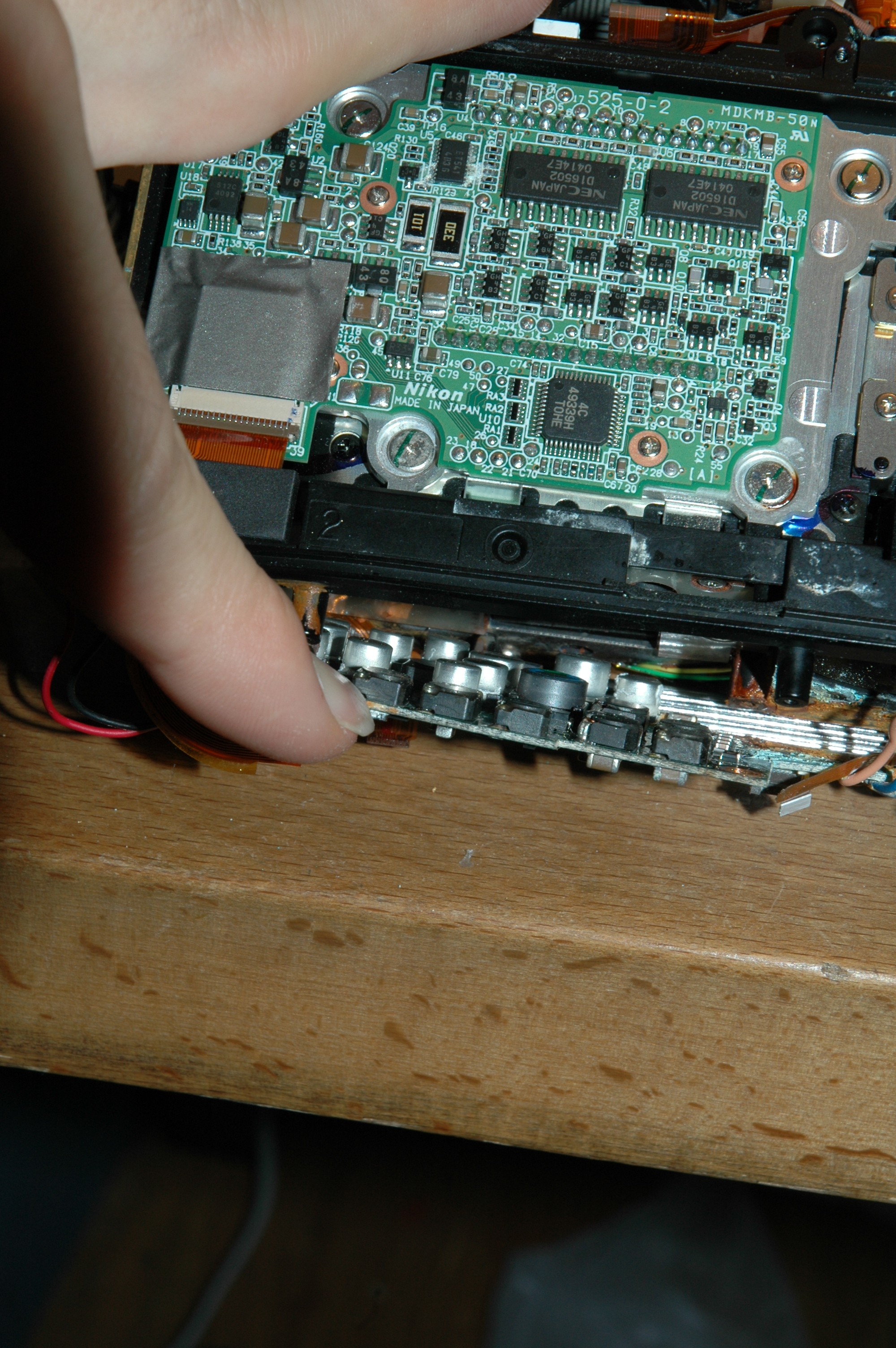

(22. /or/ex lightbox) (probably) Hitachi H8/300 compatible CPU: Nikon DSB01
on the left, above the ocular (metering chip):
Sony
415PO
ILX141N
all the connections from the top LCD and the matrix metering chip seem to go to the IC on top of the camera (top of the image)
|
